# Ambient Noise

<figure><img src="https://627748108-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0shDrJltbdGiCRz6ip4Z%2Fuploads%2FVWjuCe9TMXKogQ682yow%2Fimage.png?alt=media&#x26;token=641eab4f-3e66-40b7-bc18-85febdcd0983" alt=""><figcaption></figcaption></figure>

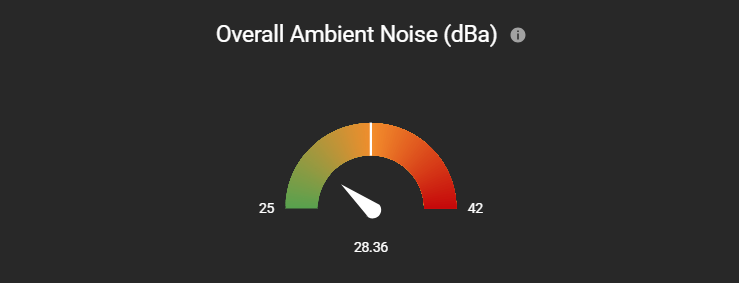

## 1. Overall Ambient Noise dBa Gauge Chart

### Description

The gauge chart displays the **overall average ambient noise**, based on the selected filter. It provides insights at the **building level or floor level** but does **not** show resource-level average ambient noise.

<figure><img src="https://627748108-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0shDrJltbdGiCRz6ip4Z%2Fuploads%2FaHHNUvYnDb6GERh3K7U9%2Fimage.png?alt=media&#x26;token=ad3e355e-86a2-473a-95a7-ea606fbf088a" alt=""><figcaption></figcaption></figure>

### Use Case

* Helps monitor overall ambient noise level.

## 2. Overall Ambient Noise KPI Card

### Description

The KPI chart displays the **overall average ambient noise**, based on the selected time frame. It provides insights at the **building level or floor level** but does **not** show resource-level average ambient noise.

**Note:** For resource-level average ambient noise, refer to the separate KPI cards below.

<figure><img src="https://627748108-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0shDrJltbdGiCRz6ip4Z%2Fuploads%2F5p3dAQTF5YgRqKFz3eQO%2Fimage.png?alt=media&#x26;token=732a18cc-bd4b-4ad5-8431-6f1c2e844e87" alt=""><figcaption></figcaption></figure>

### Use Case

* Ensures ambient noise remain within **safe limits**.

## 3. Ambient Noise by Resource

### Description

The **Ambient Noise by Resource** chart provides an overview of the **average Ambient Noise concentration** for each resource. It includes **reference lines** indicating predefined **ambient noise status thresholds**.

<figure><img src="https://627748108-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0shDrJltbdGiCRz6ip4Z%2Fuploads%2FvNZmWR2UNO2EZiAeJINm%2Fimage.png?alt=media&#x26;token=d7157b69-358e-4fca-94a6-264ecc01abbf" alt=""><figcaption></figcaption></figure>

### Use Case

* Helps identify **noisy resources** that may affect employee focus and productivity.

## 4. Average Ambient Noise KPI cards for Resource

### Description

The KPI cards display the values and trends of the daily, weekly, and monthly average ambient noise over the selected time range. The up and down arrows indicate comparisons between time periods based on the KPI chart. Additionally, a gauge chart displays the **overall average ambient noise** of a resource. All these charts are filtered by the selected resource.

<figure><img src="https://627748108-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0shDrJltbdGiCRz6ip4Z%2Fuploads%2FaXLXaMlV65cq8pMbY1Hr%2Fimage.png?alt=media&#x26;token=fa91437f-3519-4b61-b439-1a51495321f8" alt=""><figcaption></figcaption></figure>

### Use Case

* Enables facility managers to track **daily, weekly, and monthly noise trends**.

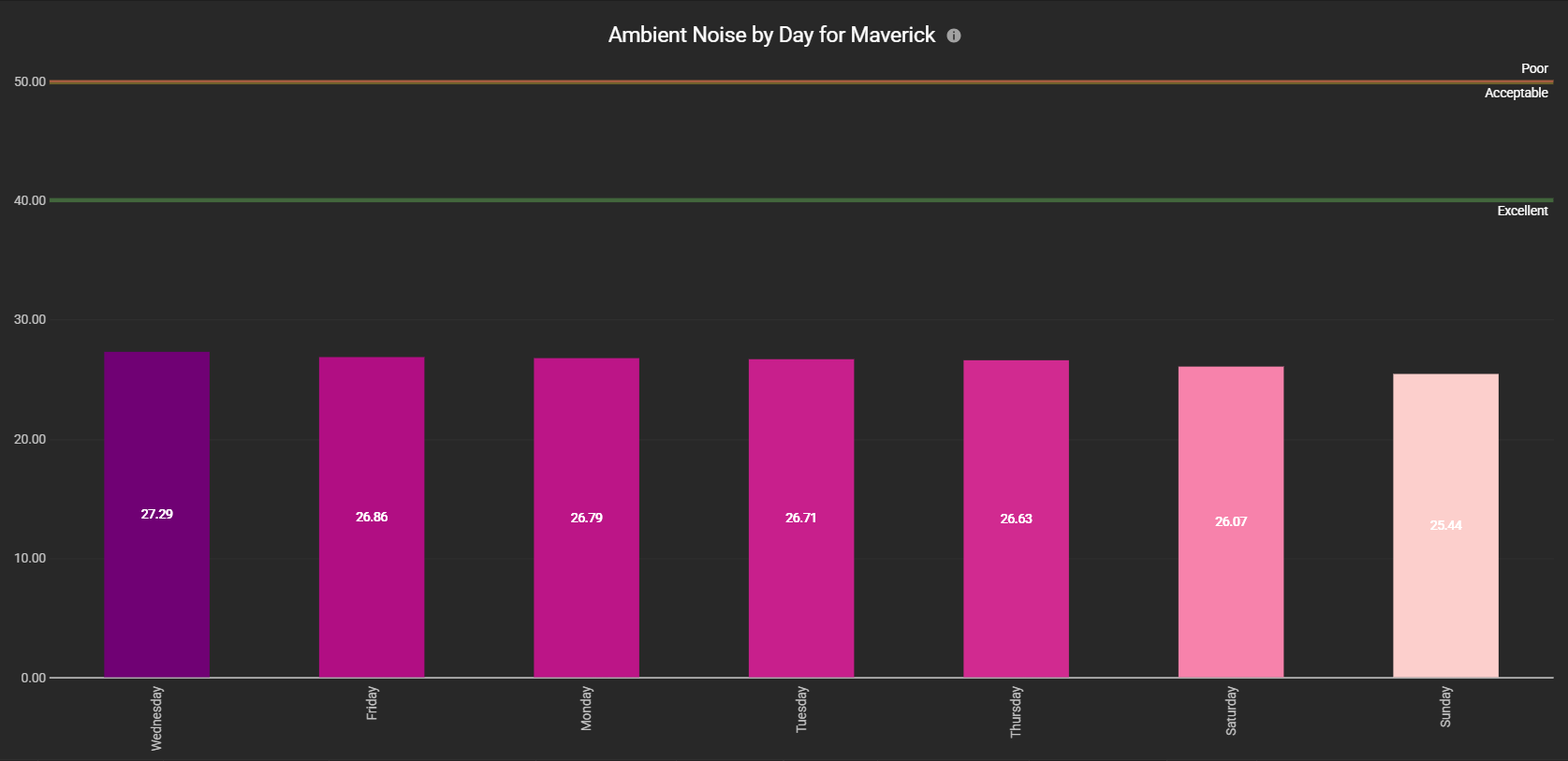

## 5. Ambient Noise by Day for Resource

### Description

The chart displays the ambient noise by weekday for the selected resource.

<figure><img src="https://627748108-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0shDrJltbdGiCRz6ip4Z%2Fuploads%2Fmd6kMLnF5oJNtHRcytUn%2Fimage.png?alt=media&#x26;token=feff6f8f-b703-439b-a9f8-d6e6d915544c" alt=""><figcaption></figcaption></figure>

### Use Case

* Identify if noise levels **spike on specific days**.
* Adjust **schedules or policies** to maintain a comfortable noise environment.

## 6. Ambient Noise Trend for Resource

### Description

The chart displays the ambient noise trend for the selected time frame and resource.

<figure><img src="https://627748108-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0shDrJltbdGiCRz6ip4Z%2Fuploads%2FRCe91m10gSg2y6yx2XMW%2Fimage.png?alt=media&#x26;token=f17889ec-2903-44f4-89b2-54036c401724" alt=""><figcaption></figcaption></figure>

### Use Case

* Compare ambient noise **trends over different periods** to track improvements.

## 7. Summary Table

### Description

The summary table displays the raw data for ambient noise sensor within the selected time range. This data is used to create the above charts. Users can download the data as a CSV file or create their own charts from the summary table.

<figure><img src="https://627748108-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0shDrJltbdGiCRz6ip4Z%2Fuploads%2FVQEqTdc1eVnQgP6XiUsd%2Fimage.png?alt=media&#x26;token=1652af32-d931-46f9-acdf-3567050774e5" alt=""><figcaption></figcaption></figure>

### Use Case

* Investigate fluctuations in average daily ambient noise.
* Allows users to **export data** for further analysis or reporting.
