Humidity Log

This page provides insights into the data from the Humidity sensor, measured in percentage. The charts are based on data representing the average humidity level per day for each resource.

1. Overall Humidity % Gauge Chart

Description

The gauge chart displays the overall average humidity level, based on the selected filter. It provides insights at the building level or floor level but does not show resource-level average humidity level.

Use Case

  • Helps monitor overall humidity level.

2. Overall Humidity Level KPI Card

Description

The KPI chart displays the overall average humidity level, based on the selected filter. It provides insights at the building level or floor level but does not show resource-level average humidity level.

Note: For resource-level average humidity level, refer to the separate KPI cards below.

Use Case

  • Track if humidity level exceed recommended thresholds.

3. Humidity Level by Resource

Description

The Humidity Level by Resource chart provides an overview of the average humidity concentration for each resource. It includes reference lines indicating predefined humidity status thresholds.

Use Case

  • Identify areas with excessive humidity.

  • Ensure that humidity remain within acceptable limits.

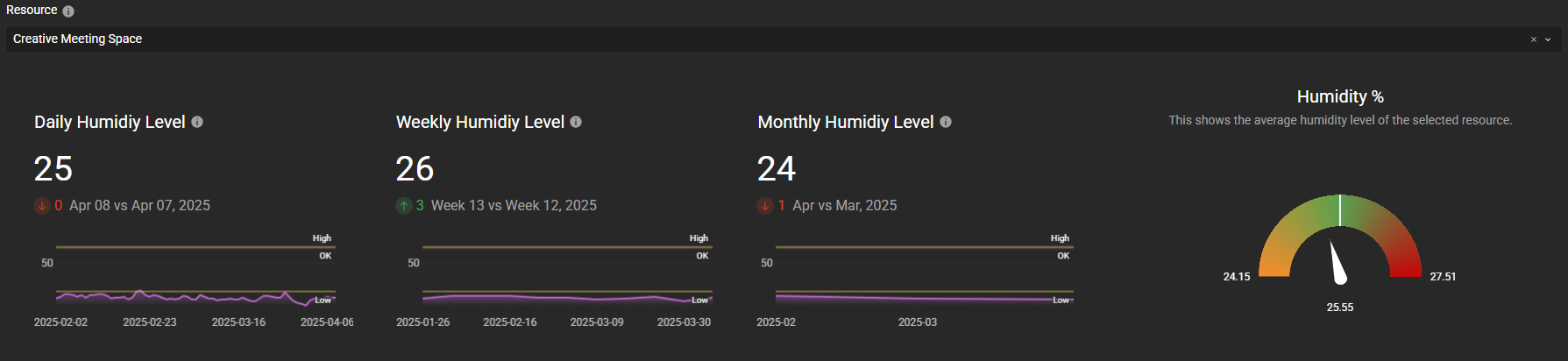

4. Average Humidity Level KPI cards for Resource

Description

The KPI cards display the values and trends of the daily, weekly, and monthly average humidity over the selected time range. The up and down arrows indicate comparisons between time periods based on the KPI chart. Additionally, a gauge chart displays the overall average humidity of a resource. All these charts are filtered by the selected resource.

Use Case

  • Enables facility managers to track daily, weekly, and monthly humidity trends.

5. Humidity Level by Day for Resource

Description

The chart displays the humidity level by weekday for the selected resource.

Use Case

  • Understand if certain days have higher humidity.

  • Compare sound trends over different periods to track improvements.

6. Humidity Level Trend for Resource

Description

The chart displays the humidity level trend for the selected time frame and resource.

Use Case

  • Compare humidity trends over different periods to track improvements.

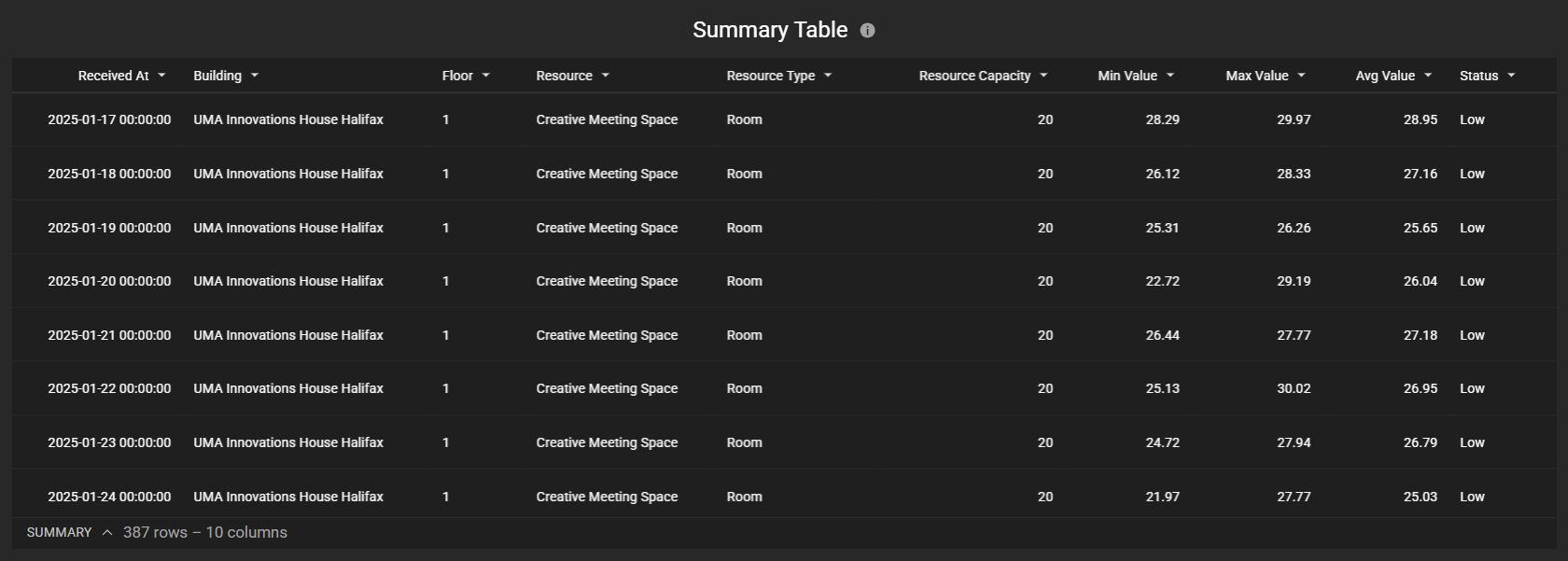

7. Summary Table

Description

The summary table displays the raw data for humidity sensor within the selected time range. This data is used to create the above charts. Users can download the data as a CSV file or create their own charts from the summary table.

Use Case

  • Investigate fluctuations in average daily humidity.

  • Allows users to export data for further analysis or reporting.
