Add Trend Lines

Trend lines are lines added to visualisations to highlight and predict patterns across multiple values in a set of data. For example, you may want to track your company's overall pace of revenue growth over the past 5 years.

This article shows how to add, edit, and delete trend lines in visualisations.

Trend Line Model Types

The following model types are available: Linear, Logarithmic, Exponential, Power, Quadratic, and Polynomial.

If you’re unsure which model type to choose, we recommend trying a few and picking the one that looks best with your data. A line’s R² value can also help you determine best fit.

Each model type is based on an underlying linear regression formula. These formulas are included below. However, understanding the math behind the line is not necessary for using trend lines in Analytics Pro.

Linear

Linear trend lines are used for data that follows a simple, steady, straight line. Data points may increase or decrease, but the trend remains steady.

Formula: Y = a + b * X

Logarithmic

Logarithmic trend lines are used for data sets in which the rate of change increases or decreases quickly before levelling out.

Formula: Y = a + b * log(X)

Exponential

Exponential trend lines are used for data sets in which the values rise or fall at constantly increasing rates.

Exponential trend lines don't recognise zeros or negative numbers.

Formula: Y = a * e^(b * X)

Power

Power trend lines are used for data sets in which the values increase at a specific rate.

Power trend lines don't recognise zeros or negative numbers.

Formula: Y = a * X^b

Polynomial

Polynomial trend lines are used when data fluctuates. They're helpful when analysing gains and losses over a large period of time.

Analytics Pro's polynomial trend lines default to a polynomial order of 3 and support orders 3 - 7. Polynomial order refers to the number of coefficients applied. This effects how many hills or valleys are present in the line. The higher the number, the more hills or valleys to expect. Order 3 trends typically have one or two hills or valleys. Whereas order 2 trends would have only one hill or valley.

Formula: Y = a + b * X + … + k * X^3

Quadratic

Quadratic trend lines are 2nd-order polynomial trend lines. Much like Polynomial trend lines, they're used to smooth out fluctuations in a data set.

Formula: Y = a + b * X + c * X^2

Determine Best Fit from R² Values

R-squared (R²) represents how well the trend line fits the data. This is based on variance between data points.

R² values are always between 0 and 1. Values closer to 0 signal that the line fit is worse, while values closer to 1 signify a better fit.

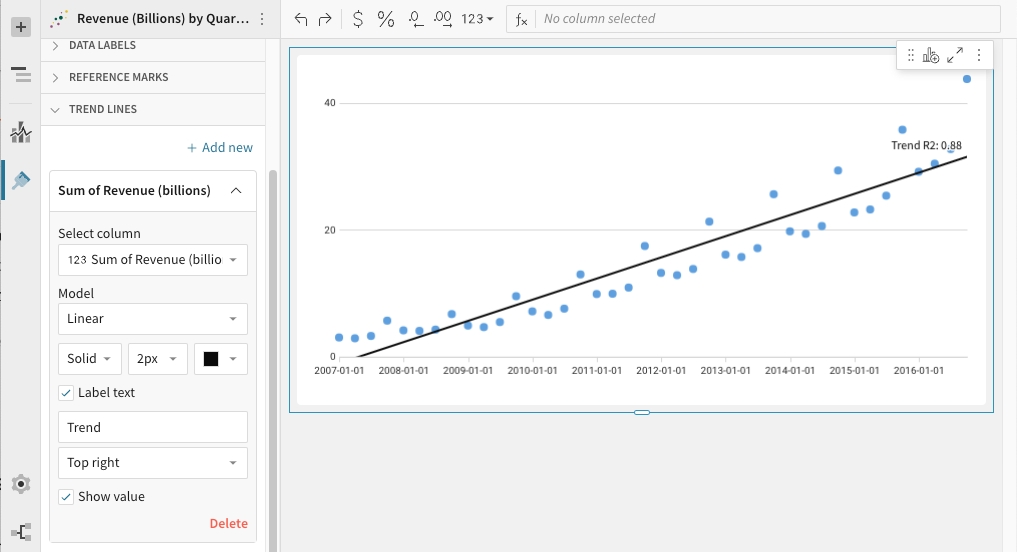

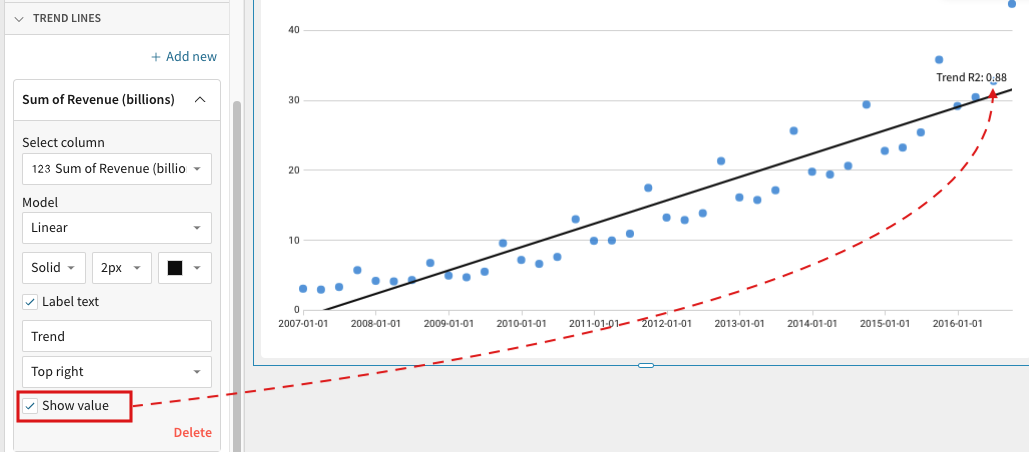

To include the R² value on a visualisation's trend line, check the trend line's Show value option in the editor panel. The value will appear wherever the trend line label is positioned in relation to the line.

Add a Trend Line

To add a trend line to a visualisation:

  1. Select the visualisation. To support trend lines, a visualisation must have values plotted on both its X-AXIS and Y-AXIS. Both axes must also have a compatible scale type applied. The following scale types are compatible with trend lines: Linear, Time, Log, Pow, Sqrt. Visualisations that meet any of the following do not support trend lines: trellised visualisations, stacked visualisations, and visualisations with values plotted on the COLOR field. The column you want to use to calculate a trend should be plotted on the Y-AXIS.

  2. Open the visualisation's format panel.

  3. Click TREND LINES.

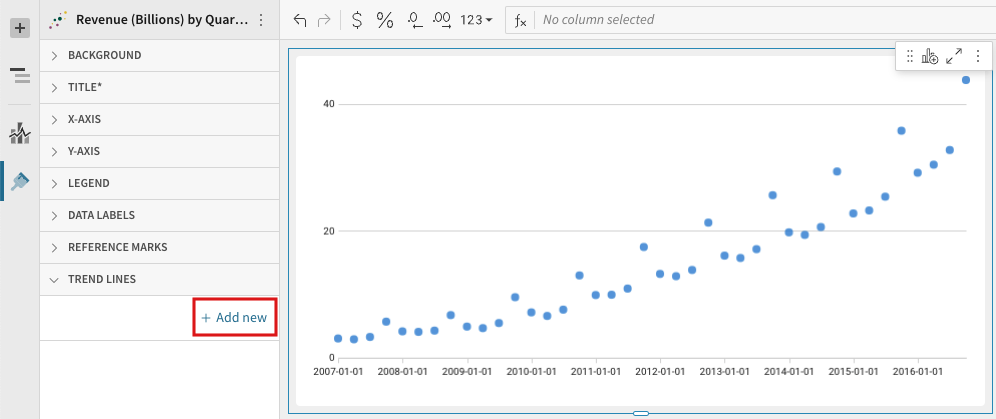

  4. Click + Add new.

  5. Click the new Trend line dropdown.

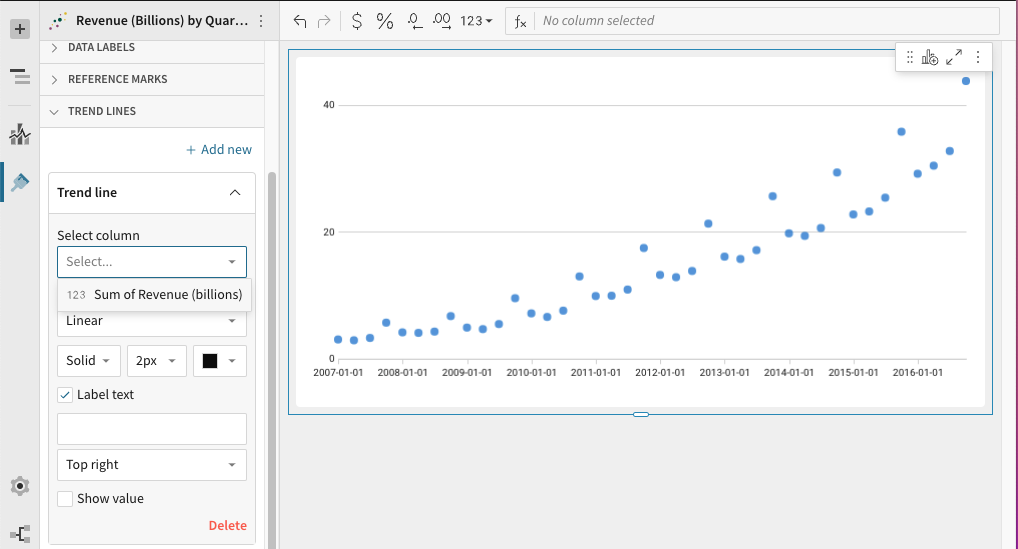

  6. Under Select column, select a column to use for the trend. The available list contains only columns plotted on the visualisation's Y-AXIS.

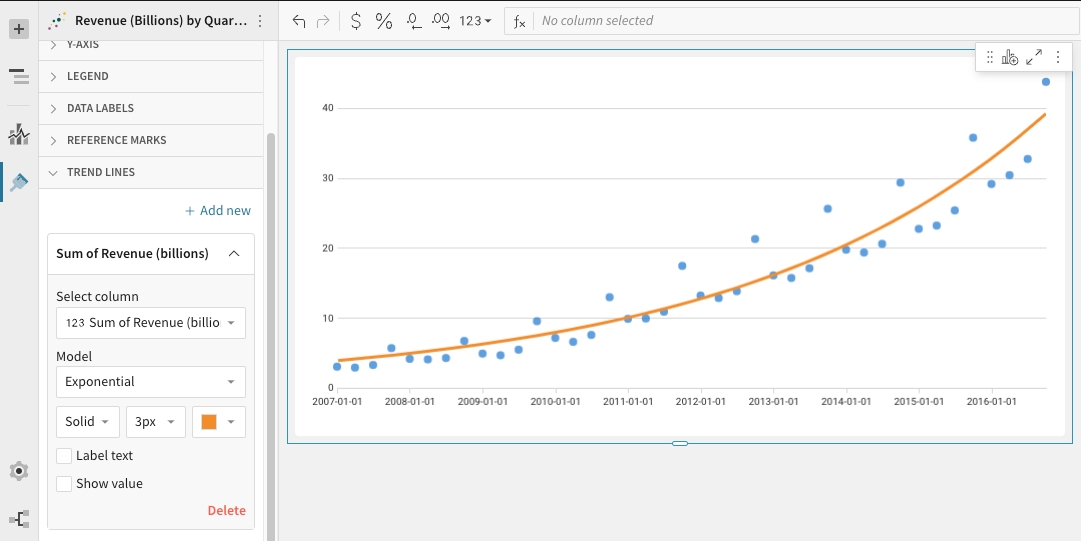

  7. Under Model, select a trend line model type:

  • Linear: display as a best-fit straight line

  • Logarithmic: used for data sets in which the rate of change increases or decreases quickly before levelling out

  • Exponential: used for data sets in which the values rise or fall at constantly increasing rates

  • Power: used for data sets in which the values increase at a specific rate.

  • Polynomial: used when data fluctuates. They're helpful when analysing gains and losses over a large period of time. Analytics Pro's polynomial trend lines default to a polynomial order of 3. This value is configurable below.

  • Quadratic: 2nd-order polynomial trend lines used to smooth out fluctuations in a data set

  • [optional for Polynomial trend lines only] Under Degree, select a polynomial order between 3 and 7. Polynomial order effects how many hills or valleys are present in the line. The higher the number, the more hills or valleys to expect.

  • [optional] Select the line style: Solid, Dashed or Dotted. Then select its size and colour.

  • [optional] Enter a text label into the text box below the Label text checkbox. For no label, leave the text box blank or uncheck Label text.

  • [optional] Select where you would like to position the label in relation to the line: Top right, Top left, Bottom right, Bottom left.

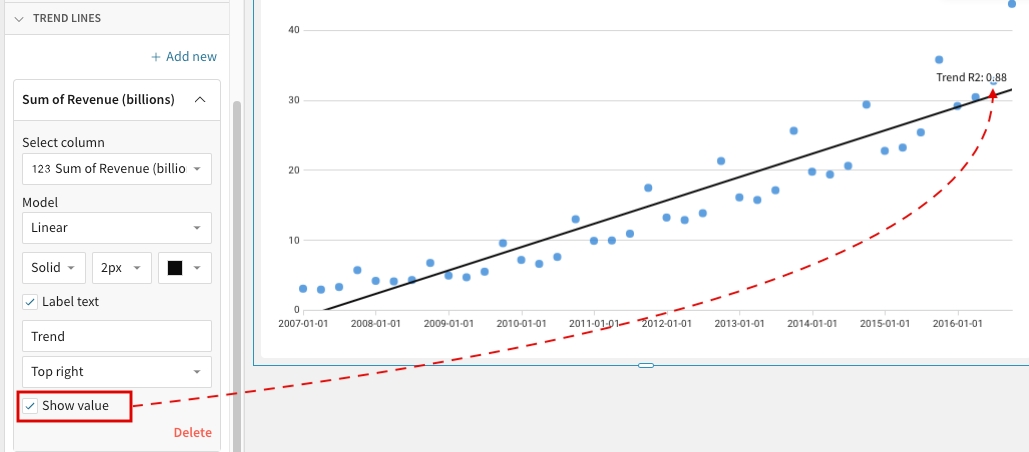

  • [optional] To show the line's R² value, check Show value. R² represents how well the trend line fits the data based on variance between data points.

Edit a Trend Line

To Edit an existing trend line, enter Edit mode, then:

  1. Open the visualisation's format panel.

  2. Click TREND LINES.

  3. Select the dropdown associated with the trend line.

  4. Make any of the following edits:

    • Linear: display as a best-fit straight line

    • Logarithmic: used for data sets in which the rate of change increases or decreases quickly before levelling out

    • Exponential: used for data sets in which the values rise or fall at constantly increasing rates

    • Power: used for data sets in which the values increase at a specific rate.

    • Polynomial: used when data fluctuates. They're helpful when analysing gains and losses over a large period of time. Analytics Pro's polynomial trend lines default to a polynomial order of 3. This value is configurable below.

    • Quadratic: 2nd-order polynomial trend lines used to smooth out fluctuations in a data set

  • To select a new column to use for the trend, pick a column under Select column. The available list contains only columns plotted on the visualisation's Y-AXIS.

  • To change the line's model type, select a model type under Model.

  • [optional for Polynomial trend lines only] Under Degree, select a polynomial order between 3 and 7.

  • Select the line style: Solid, Dashed or Dotted.

  • Select a new line size or colour.

  • To add a text label check the Label text checkbox, and type into the text box that appears below. For no label, leave the text box blank or uncheck Label text.

  • To position or reposition the label in relation to the line, select a position from the dropdown menu: Top right, Top left, Bottom right, Bottom left.

  • To show/hide the line's R² value, check/uncheck Show value. R² represents how well the trend line fits the data based on variance between data points.

Delete a Trend Line

To delete a trend line, enter Edit mode, then:

  1. Open the visualisation's format panel.

  2. Click TREND LINES.

  3. Select the dropdown associated with the trend line.

  4. In the bottom right corner of the trend line editor, click Delete.

Axis Scale Types

A visualisation only supports trend lines if its columns are plotted on both its axes and if a trend line compatible scale type is applied. The following scale types are compatible with trend lines: Linear, Time, Log, Pow, Sqrt.

Visualisations that use an incompatible scale type display a warning message in the TREND LINES section of the format panel. To clear this warning and add a trend line, check your axes’ scale types and update as appropriate.

To change an axis' scale type:

  1. Open the visualisation's format panel.

  2. Open the axis' format section: X-AXIS or Y-AXIS.

  3. Select an option from the Scale type dropdown menu. Not all visualisations support all scale types. The following scale types are trend line compatible:

  • Linear: Plots data along the axis using a linear numeric scale

  • Time: Plots data along the axis as time values

  • Log: Plots data along the axis using a logarithmic scale

  • Pow: Plots data along the axis using a power scale

  • Sqrt: Plots data along the axis using a square-root scale
